Showing all 3 results
-

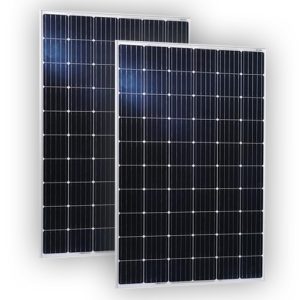

MAYSUN Panel Surya 200WP Solar Cell
Electrical Specification
Maximum Power 200 Wp
Power Tolerance (-1,+3)%
Optimum Operating Voltage 41,04 V
Optimum Operating Current 10,95 A
Open circuit voltage 47,96 V
Short circuit current 11,49 A
Maximum system voltage 100 V DC
Module efficiency 20,8 %
Voltage temperature coefficient -155±10 mV/˚C
Current temperature coefficient +0,06±0,01 %/˚ C
Power temperature coefficient -0,5±0,05 %/˚ CMechanical Characteristic
Dimension 1480 x 770 x 30mm
Weight 16.08 Kgs
Solar Cells 166 x 83 mm, 144 seriae
Cable Length 30 cm, 4 mm2
Connector MC4
Glass Type High Transmits, Lower IRON, 3,2 MM
Frame Alumunium Alloy -
MAYSUN Panel Surya 450WP Solar Cell
Electrical Specification Maximum Power 450W Wp Power Tolerance (-1,+3) % Optimum Operating Voltage 41,04 V Optimum Operating Current 10,95 A Open circuit voltage 47,96 V Short circuit current 11,49 A Maximum system voltage 100 V DC Module efficiency 20,8 % Voltage temperature coefficient -155±10 mV/˚C Current temperature coefficient +0,06±0,01 %/˚ C Power temperature coefficient -0,5±0,05 %/˚ C Mechanical Characteristic Dimension 2094 x1038 x 35 Weight 21,5 Kgs Solar Cells 166 x 83 mm, 144 seriae Cable Length 30 cm, 4 mm2 Connector MC4 Glass Type High Transmits, Lower IRON, 3,2 MM
Frame Alumunium Alloy -

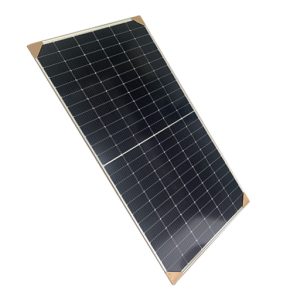

MAYSUN Panel Surya 540WP Solar Cell
Model: MS200M – 60
Rated Maximum Power (Pm) 540W
Tolerance 5%
Voltage at Pmax (Vmp) 40,70 V
Current at Pmax (Imp) 13,27 A
Open-Circuit Voltage (Voc) 49,42V
Short-Circuit Current (Isc) 13,85A
Normal Operating Cell Temp (NOCT) 43+/-2
Maximum System Voltage 1500V DC
Maximum Series Fuse Rating 25A
Operating Temperature -40 to +85
Application Class Class A
Cell Technology Mono -SiDimension 2279 x 1134 x 35mm
Weight 28,9 Kgs
Connector MC4
Glass Type High Transmits, Lower IRON, 3,2 MM
Frame Alumunium Alloy
