Solar Panel

Showing all 9 results

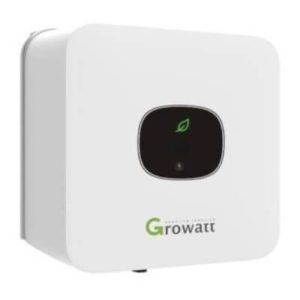

GROWATT Inverter untuk Panel Surya ON GRID System 2000W

GROWATT Inverter MIC 2000 TL-X on grid 2000 watt include Shine WIFI

Spesifikasi
-Type: MIC 2000TL-X
-Single-Phase
-Dimension : 274 x 254 x 138 mm
-Weight : 6KG
-Maximum Efficiency : 97,6%
-Compact Design
-Touch Key & OLED Display
-Flexible Monitoring Options
-Easy Installation

Input data (DC) :
Max. recommended PV power (for module STC) 2800W
Max. DC voltage 500V
Start voltage 50V
Nominal voltage 360V
MPP voltage range 50V-500V
No. of MPP trackers 1
No. of PV strings per MPP tracker 1
Max. input current per MPP tracker 13A
Max. short-circuit current per MPP tracker 16A

Output data (AC) :
AC nominal power 2000W
Max. AC apparent power 2000VA
Nominal AC voltage 230V (180-280V)
AC grid frequency 50/60 Hz (45-55Hz/55-65 Hz)
Max. output current 9.5A
Adjustable power factor 0.8leading…0.8lagging

Read more
GROWATT Inverter untuk Panel Surya ON GRID System 3000W

GROWATT On Grid Inverter 3kw MIC 3000TL-X ongrid 3000watt include Shine WIFI

Inverter Growatt MIC 3000TL-X ini adalah inverter ongrid dengan efisiensi 97,6% ini ideal untuk mengatasi kebutuhan listrik rumah pribadi dimana koneksinya tanpa mengunakan aki (jadi hanya mengunakan panel surya dan inverter dipasang untuk sistem satu phase).

Spesifikasi:
-Type: MIC 3000TL-X
-Single Phase
-Dimension : 274 x 254 x 138 mm
-Weight : 6,5KG
-Maximum Efficiency : 97,4%
-Maximum Power : 3000W
-Compact Design
-Touch Key & OLED Display
-Flexible Monitoring Options
-Easy Installation

Input Data (DC) :
Max. Recommended PV Power (for module STC) : 4200W
Max. DC Voltage : 550V
Start Voltage : 80V
Nominal Voltage : 360V
MPP Voltage Range : 65V-550V
No. of MPP Trackers : 1
No. of PV Strings per MPP Tracker : 1
Max. Input Current per MPP Tracker : 13A
Max. Short-Circuit Current per MPP Tracker : 16A

Output data (AC) :
AC Nominal Power :3000W
Max. AC Apparent Power : 3000VA
Nominal AC voltage : 230V (180-280V)
AC Grid Frequency : 50/60 Hz (45-55Hz/55-65 Hz)
Max. Output Current : 14.3A
Adjustable Power Factor :0.8leading…0.8lagging
THDi : <3% AC Grid Connection Type : Single Phase

Read more

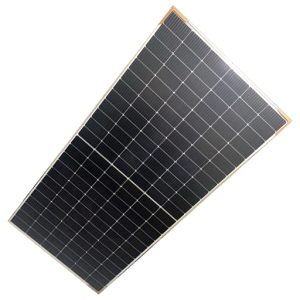

JA Solar Cell Panel Surya

Spesifikasi
Power peak 540 Wp
No of cells 144 (6×24)
Weight 28,60 kg
Voc 49,60 V
Isc 13,86 A
Vmpp 41,64V
Impp 12,97 A
Effisiensi 20,9%
Dimensi 2279mm x 1134mm x 35mm
Tipe Sel MonoCrystalline
Junction Box IP68, 3 diodes
Cable Length 1300mm
Certificates IEC 61215, IEC 61730 , ISO 9001: 2015 ,ISO 14001:2015, OHSAS 18001:2007, IEC TS 62941:2016

Read more
MAYSUN Panel Surya 200WP Solar Cell

Electrical Specification
Maximum Power 200 Wp
Power Tolerance (-1,+3)%
Optimum Operating Voltage 41,04 V
Optimum Operating Current 10,95 A
Open circuit voltage 47,96 V
Short circuit current 11,49 A
Maximum system voltage 100 V DC
Module efficiency 20,8 %
Voltage temperature coefficient -155±10 mV/˚C
Current temperature coefficient +0,06±0,01 %/˚ C
Power temperature coefficient -0,5±0,05 %/˚ C

Mechanical Characteristic
Dimension 1480 x 770 x 30mm
Weight 16.08 Kgs
Solar Cells 166 x 83 mm, 144 seriae
Cable Length 30 cm, 4 mm2
Connector MC4
Glass Type High Transmits, Lower IRON, 3,2 MM
Frame Alumunium Alloy

Read more

MAYSUN Panel Surya 450WP Solar Cell

Electrical Specification
Maximum Power	450W	Wp
Power Tolerance	(-1,+3)	%
Optimum Operating Voltage	41,04	V
Optimum Operating Current	10,95	A
Open circuit voltage	47,96	V
Short circuit current	11,49	A
Maximum system voltage	100	V DC
Module efficiency	20,8	%
Voltage temperature coefficient	-155±10	mV/˚C
Current temperature coefficient	+0,06±0,01	%/˚ C
Power temperature coefficient	-0,5±0,05	%/˚ C
Mechanical Characteristic
Dimension	2094 x1038 x 35
Weight	21,5 Kgs
Solar Cells	166 x 83 mm, 144 seriae
Cable Length	30 cm, 4 mm2
Connector	MC4
Glass Type	High Transmits, Lower IRON, 3,2 MM
Frame	Alumunium Alloy

MAYSUN Panel Surya 540WP Solar Cell

Model: MS200M – 60
Rated Maximum Power (Pm) 540W
Tolerance 5%
Voltage at Pmax (Vmp) 40,70 V
Current at Pmax (Imp) 13,27 A
Open-Circuit Voltage (Voc) 49,42V
Short-Circuit Current (Isc) 13,85A
Normal Operating Cell Temp (NOCT) 43+/-2
Maximum System Voltage 1500V DC
Maximum Series Fuse Rating 25A
Operating Temperature -40 to +85
Application Class Class A
Cell Technology Mono -Si

Dimension 2279 x 1134 x 35mm
Weight 28,9 Kgs
Connector MC4
Glass Type High Transmits, Lower IRON, 3,2 MM
Frame Alumunium Alloy

Read more
MIKA Kabel untuk Solar Panel 100 meter

Kabel solar panel surya
Merek Mika

2 x 6 mm
1 roll – 100 meter

pembelian minimal 1 roll

Read more

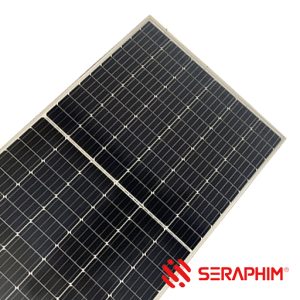

SERAPHIM Panel Surya 320WP Solar Cell

Seraphim Monocrystalline Solar Panel 320wp
Garansi 10 tahun
Tersertifikasi ISO, CE, TUV

Spesifikasi

Peak Power (Pmax) : 320W
Max Power Voltage (Vmp) : 37.2V
Max Power Current (Imp) : 8.61A
Open-Circuit Voltage(Voc) : 43.2V
Short-Circuit Current (Isc) : 9.29A
Power Tolerance : +-3%
Max System Voltage : 1000V
Operating Temperature : -4’C to +85’C
Dimension(mm) : 1940 x 990 x 40 mm
Connector: MC4 Plug Type

Harga belum termasuk biaya pengemasan dengan pallet/packing kayu.

Read more
VISERO Kabel untuk Solar Panel

Barang Baru Original Merek Visero
untuk pemasangan instalasi panel surya / solar panel dengan daya tegangan listrik yang stabil

2 x 2.5mm panjang 50 meter
2 x 2.5mm panjang 100 meter

Minimal pembelian 50 meter
Pembelian diatas 100 meter nego dengan sales kami

Read more
