Application
For power and control cable use in machineries, tools, production lines, conveyor belts and other electrical installations. Suitable for installation on fixed and flexible application with medium mechanical stress without tensile stress or forced movements

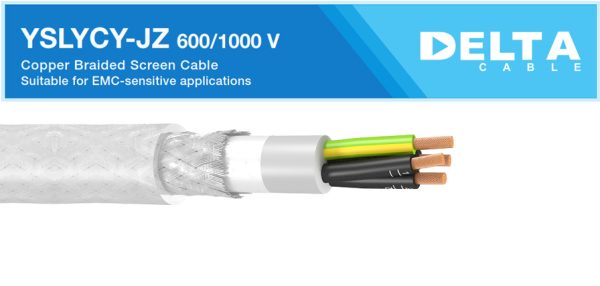

Construction
Stranded copper conductor according to IEC 60228, class 5
PVC core insulation
Core identification : black with consecutive numbering, with or without yellow-green protective conductor
Cores are twisted in layers
PVC inner sheath
Tinned Copper Wire braided screening, coverage approx. 85%
PVC outer sheath, flame retardant to IEC-60332-1, colour : transparant or black
Electrical & Technical Data
| Working voltage Uo/U | : 600/1000V |
| Test voltage | : 3500VAC/ 5 min |
| Insulation resistance | : 20 MΩ x Km |
| Working temperature, moved | : -50C to +700C |
| fixed | : -300C to +700C |
| Minimum bending radius | : 15 x cable diameter |
| Cross section(mm2) | Outer Diameter approx (mm) |
Cable Weight approx (kg/km) |
|---|---|---|
| 4 x 1.5 | 14.7 | 331 |
| 4 x 2.5 | 15.6 | 395 |
| 4 x 4 | 18.0 | 540 |
| 4 x 6 | 19.5 | 663 |
| 4 x 10 | 21.9 | 910 |
| 4 x 16 | 24.7 | 1247 |
| 4 x 25 | 29.1 | 1795 |
| 4 x 35 | 33.1 | 2391 |
| 4 x 50 | 38.3 | 3297 |
| 4 x 70 | 42.6 | 4282 |
| 4 x 95 | 49.1 | 5757 |
| 4 x 120 | 53.4 | 7017 |
| 4 x 150 | 59.4 | 8766 |
| 4 x 185 | 65.1 | 10632 |
| 4 x 240 | 72.9 | 13515 |
