Cores Colour
| JZ | : Black cores with white numbering + yellow / green |
| OZ | : Black cores with white numbering |
| JB | : Coloured cores according to VDE 0293 + yellow – green |
| OB | : Coloured cores according to VDE 0293 |

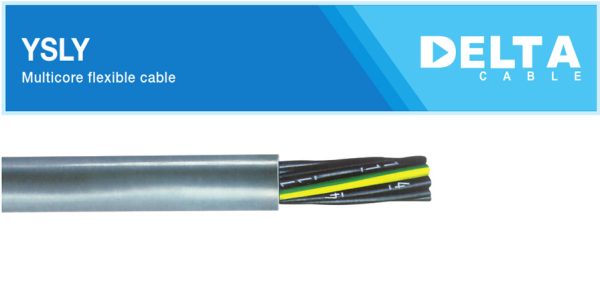

Construction
| Conductor | : Stranded bare Cu conductor, |
| fine wire strand structure according to IEC-60228, class 5 | |
| Insulation | : Special quality PVC |
| Sheath | : PVC |
| Sheath | : PVC, grey colour, flame retardant to IEC 60332-1 |
Application
This cable is used as control and connecting cables for tooling machinery, production lines, conveyor and assembly line as well as in construction plant. This cable is ideal for medium loads and flexible application for free movements without forced movement and tensile load. Suitable to use for installation in dry, moist and wet rooms, indoor.
Electrical & Technical Data
| Rated voltage | : 300/500V |
| Test voltage | : 1000VAC/1 min |
| Insulation Resistance | : min. 20 MΩ x Km |
| Max. working temperature | : 700C |
| Min. laying temperature | : -50C |
| Bending radius | : 15 x cable diameter |
| Cross section(mm2) | Outer Diameter approx (mm) |
Cable Weight approx (kg/km) |
|---|---|---|
| 2 x 0.5 | 4.7 | 36 |
| 3 x 0.5 | 5.0 | 43 |
| 4 x 0.5 | 5.6 | 54 |
| 5 x 0.5 | 6.1 | 66 |
| 7 x 0.5 | 6.6 | 81 |
| 8 x 0.5 | 7.8 | 100 |
| 10 x 0.5 | 9.5 | 134 |
| 12 x 0.5 | 9.6 | 141 |
| 14 x 0.5 | 10 | 161 |
| 16 x 0.5 | 10.47 | 186 |
| 18 x 0.5 | 11.4 | 211 |
| 21 x 0.5 | 12 | 224 |
| 25 x 0.5 | 13.6 | 271 |
| 34 x 0.5 | 14.5 | 325 |
| 40 x 0.5 | 15.3 | 395 |
| 42 x 0.5 | 15.8 | 432 |
| 50 x 0.5 | 16.6 | 501 |
| 61 x 0.5 | 19.4 | 595 |
| 2 x 0.75 | 5.9 | 54 |
| 3 x 0.75 | 6.2 | 63 |
| 4 x 0.75 | 6.7 | 75 |
| 5 x 0.75 | 7.3 | 91 |
| 7 x 0.75 | 7.9 | 112 |
| 8 x 0.75 | 8.7 | 132 |
| 10 x 0.75 | 10.4 | 170 |
| 12 x 0.75 | 10.6 | 181 |
| 14 x 0.75 | 11.2 | 215 |
| 16 x 0.75 | 11.8 | 242 |
| 18 x 0.75 | 12.4 | 268 |
| 21 x 0.75 | 13.1 | 288 |
| 25 x 0.75 | 15 | 353 |
| 34 x 0.75 | 17 | 472 |
| 42 x 0.75 | 18.2 | 560 |
| 50 x 0.75 | 20 | 660 |
| 61 x 0.75 | 21.2 | 772 |
| 2 x 1 | 6.3 | 63 |
| 3 x 1 | 6.6 | 74 |
| 4 x 1 | 7.2 | 90 |
| 5 x 1 | 7.8 | 108 |
| 7 x 1 | 8.7 | 140 |
| 8 x 1 | 9.4 | 160 |
| 10 x 1 | 11.2 | 210 |
| 12 x 1 | 11.5 | 225 |
| 14 x 1 | 12.1 | 262 |
| 16 x 1 | 12.7 | 293 |
| 18 x 1 | 13.4 | 328 |
| 20 x 1 | 14.1 | 352 |
| 21 x 1 | 14.3 | 358 |
| 24 x 1 | 16.0 | 427 |
| 25 x 1 | 16.3 | 434 |
| 34 x 1 | 18.4 | 579 |
| 42 x 1 | 19.9 | 698 |
| 50 x 1 | 21.7 | 813 |
| 60 x 1 | 23.2 | 966 |
| 2 x 1.5 | 7.3 | 87 |
| 3 x 1.5 | 7.7 | 104 |
| 4 x 1.5 | 8.6 | 130 |
| 5 x 1.5 | 9.4 | 158 |
| 7 x 1.5 | 10.3 | 199 |
| 8 x 1.5 | 11.3 | 233 |
| 10 x 1.5 | 13.2 | 296 |
| 12 x 1.5 | 13.6 | 318 |
| 14 x 1.5 | 14.5 | 378 |
| 16 x 1.5 | 15.3 | 427 |
| 18 x 1.5 | 16.1 | 476 |
| 21 x 1.5 | 17.3 | 523 |
| 25 x 1.5 | 19.8 | 638 |
| 32 x 1.5 | 21.2 | 776 |
| 34 x 1.5 | 22.3 | 849 |
| 37 x 1.5 | 22.7 | 881 |
| 42 x 1.5 | 23.9 | 1011 |
| 50 x 1.5 | 26.4 | 1199 |
| 61 x 1.5 | 28.2 | 1422 |
| 2 x 2.5 | 8.1 | 115 |
| 3 x 2.5 | 8.8 | 146 |
| 4 x 2.5 | 9.6 | 179 |
| 5 x 2.5 | 10.6 | 221 |
| 7 x 2.5 | 11.7 | 284 |
| 8 x 2.5 | 12.6 | 323 |
| 10 x 2.5 | 15.0 | 419 |
| 12 x 2.5 | 15.5 | 458 |
| 14 x 2.5 | 16.3 | 534 |
| 16 x 2.5 | 17.4 | 613 |
| 18 x 2.5 | 18.3 | 682 |
| 21 x 2.5 | 19.6 | 750 |
| 25 x 2.5 | 22.4 | 912 |
| 34 x 2.5 | 25.4 | 1227 |
| 42 x 2.5 | 27.5 | 1486 |
| 50 x 2.5 | 30 | 1727 |
| 61 x 2.5 | 32 | 2061 |
| 3 x 4 | 10.6 | 221 |
| 4 x 4 | 11.8 | 277 |
| 5 x 4 | 12.9 | 339 |
| 6 x 4 | 14.3 | 410 |
| 7 x 4 | 14.7 | 438 |
| 3 x 6 | 12.1 | 302 |
| 4 x 6 | 13.3 | 374 |
| 5 x 6 | 14.8 | 468 |
| 7 x 6 | 16.1 | 596 |
| 3 x 10 | 15.3 | 495 |
| 4 x 10 | 17.0 | 629 |
| 5 x 10 | 18.7 | 767 |
| 7 x 10 | 20.7 | 998 |
| 3 x 16 | 17.9 | 725 |
| 4 x 16 | 19.9 | 925 |
| 5 x 16 | 22.1 | 1142 |
| 7 x 16 | 24.2 | 1476 |
| 3 x 25 | 22.8 | 1156 |
| 4 x 25 | 25.5 | 1482 |
| 5 x 25 | 28.3 | 1828 |
| 3 x 35 | 26.1 | 1560 |
| 4 x 35 | 29.0 | 1990 |
| 5 x 35 | 32.3 | 2465 |
| 3 x 50 | 30.6 | 2186 |
| 4 x 50 | 34.0 | 2790 |
| 3 x 70 | 34.5 | 2907 |
| 4 x 70 | 38.5 | 3733 |
